Description

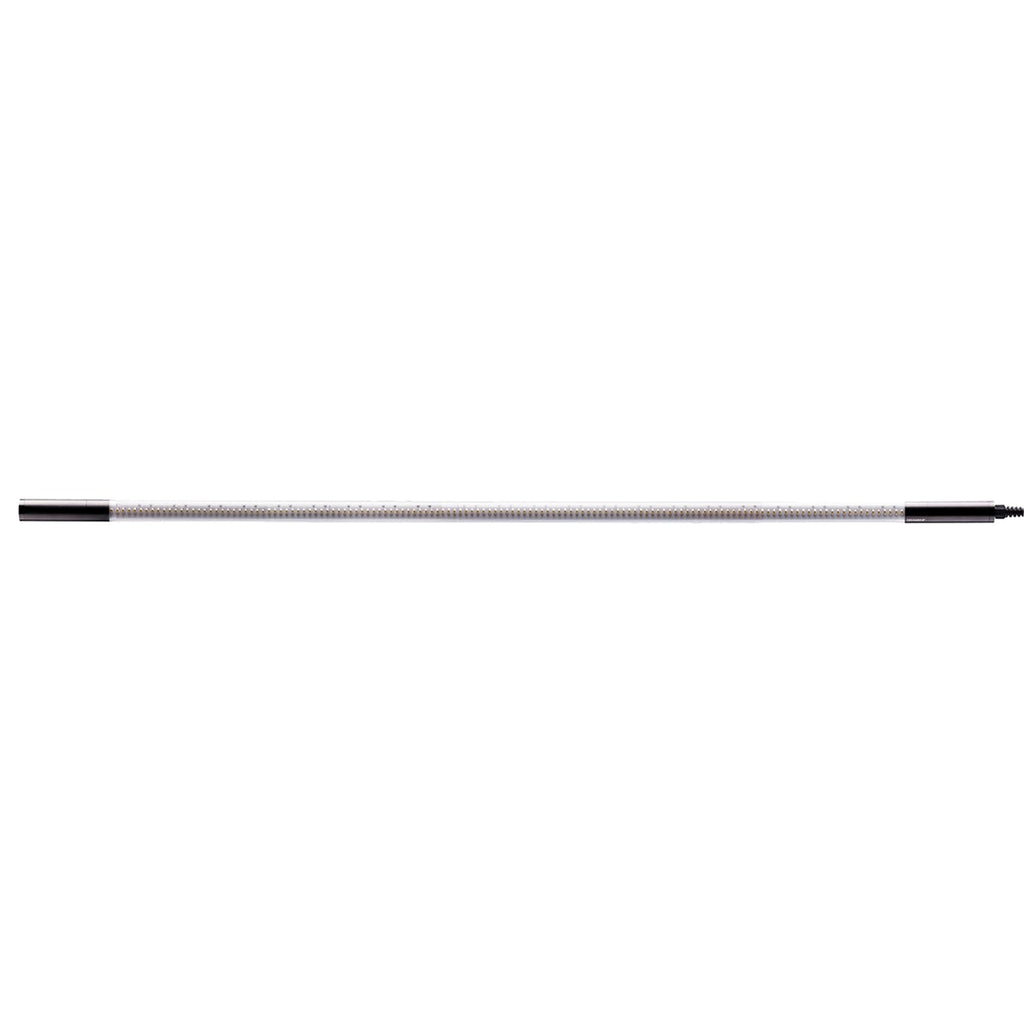

Lighting unit with 156 SMD LEDs
120 CM LIGHTING UNIT FOR CUSTOM INSTALLATIONS
LINE LIGHT is a flexible lighting solution for universal applications, designed for any environment where strong, efficient, and focused light is needed for a specific work area.
LINE LIGHT units are available in different lengths and can be used on their own or chained together, adapting to any application. These lighting units can be combined exactly as needed, offering a flexible lighting solution.
The LINE LIGHT series is based on the latest, state-of-the-art LED technology, delivering significantly higher illumination than traditional 36W fluorescent tubes.
LINE LIGHT concentrates the beam at a 75° angle, providing extremely bright and powerful illumination of the entire work area. Glare is avoided while working, and the lamp can be rotated to secure the optimal lighting angle.
The light quality is exceptionally strong, comparable to daylight, which is ideal for accurately distinguishing colors, shades, and other product details. The uniform, flicker-free illumination also reduces the risk of accidents.
Extremely robust and impact-resistant lighting solution
LINE LIGHT is made of a closed, “unbreakable” extruded acrylic (PMMA) profile, making it highly robust and impact-resistant, able to withstand the strong jolts, knocks, and vibrations from industrial machinery.
LINE LIGHT tolerates the rough, wet, and dirty conditions of professional industrial environments and is resistant to oil and chemicals. Its IP67 rating means it resists both dust and water. The LEDs have a technical lifetime of at least 100,000 hours.
Different suspension options allow the lighting units to be placed exactly where they’re needed. The optional LINE LIGHT DIMMER accessory enables seamless brightness adjustment.
Why choose LINE LIGHT 120?
- 120 cm lighting unit for universal applications
- “Unbreakable” – an extremely robust and impact-resistant lighting solution designed for 4-post lifts
- Waterproof to withstand wet and dirty workshop conditions
- Low-voltage 24 V DC
- LEDs have a technical lifetime of 100,000 hours
- Made in Denmark
Product data
| Luminous flux, Max (Lumens) | 2000 |
| Illumination, Max (Lux@0.5m) | 2800 |
| Illumination distance (meters) | 0.5 |
| Light source | 156 SMD LEDs |
| LED efficiency (lm/w) | 189 |
| CCT (Kelvin) | 6000 |
| CRI | Ra > 80 |
| Beam angle | 75° |
| Power source | 24V |
| Maximum power consumption (W) | 16 |
| Operating voltage | 24V DC |
| Charger included | No |
| Waterproof rating | IP67 |
| Impact resistance | IK07 |
| Impact resistance (meters) | 1 |
| Operating temperature | From -10 °C to +40 °C |
